Keystone Fuzion FZ 373 Slide Repair, Fiberglass & Cable Replacement
Fiberglass crack repair at the slide corner, slide cable replacement, and tank gauge replacement on a Keystone Fuzion FZ 373 toy hauler.
Before & After
Slide Corner — Before & After
Results
The slide corner was fully restored with structural fiberglass repair, factory-matched paint, and reinstalled graphics. The slide mechanism operates smoothly with the new cable and serviced motor. A new digital tank gauge provides accurate readings. All water intrusion points are sealed.
Project Overview
This Keystone Fuzion FZ 373 toy hauler arrived at Nations RV & Marine with a fiberglass crack running along the exterior wall at the slide-out corner, a failed slide cable mechanism, and a non-functional tank gauge that needed replacement.

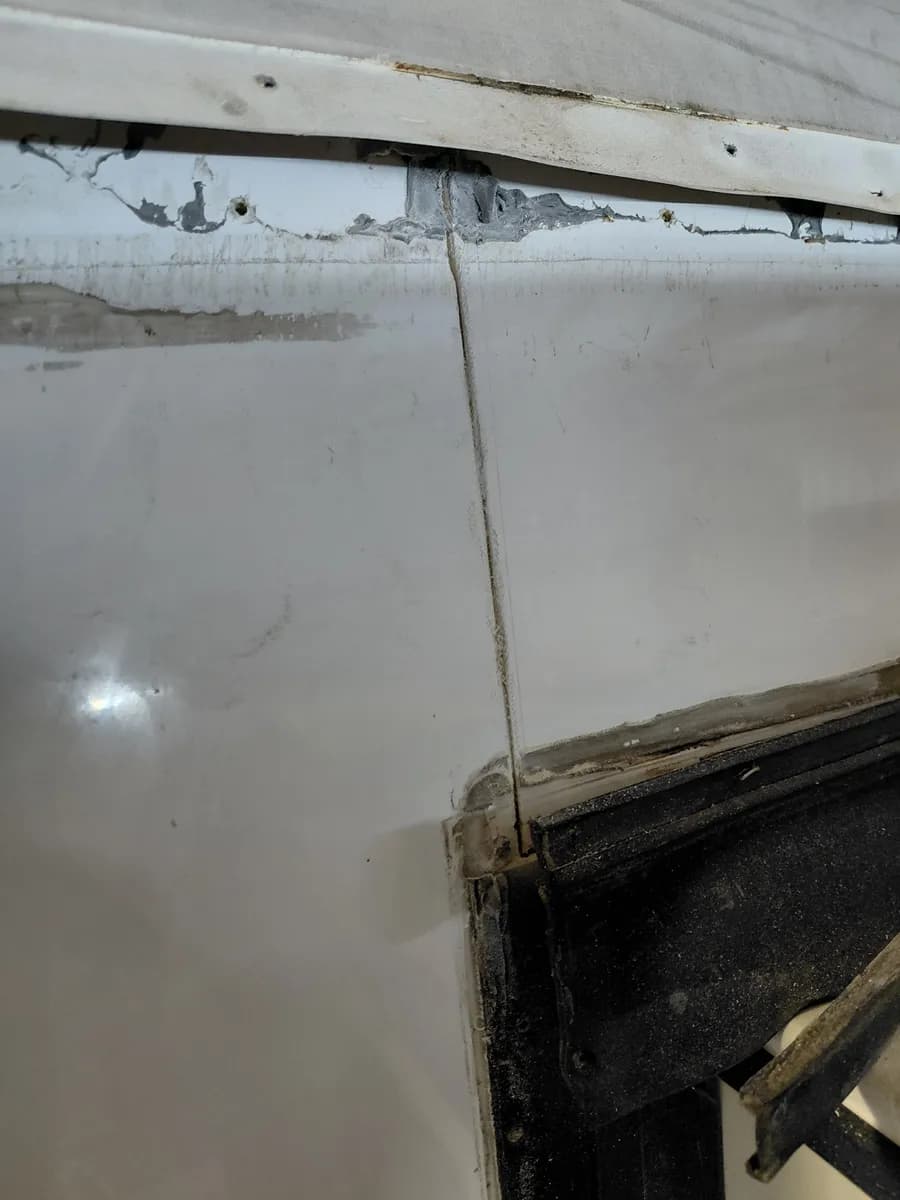

The fiberglass crack was the most visible and structurally significant issue. Where the slide-out meets the main body, stress concentrations at the corner had caused the fiberglass exterior skin to crack. Water had begun intruding through the crack, causing damage to the interior wall and insulation behind the panel. Our inspection revealed that the underlying wood framing at the slide corner had also been compromised by moisture, with broken and split blocking visible when we opened up the area.
Repairing the slide corner required us to remove the exterior fiberglass panel section, replace the damaged framing and blocking, and fabricate a new fiberglass patch that matched the original body contour. We laid up fresh fiberglass to restore structural integrity, then carefully matched the original surface profile. Once the fiberglass was cured and faired, we prepped the area for paint, masked the surrounding graphics, and sprayed to match the factory finish. The original Fuzion decal graphics were carefully reinstalled over the repaired area.
The slide cable replacement involved accessing the cable drive motor and track system underneath the slide-out. The original cable had stretched and frayed, causing the slide to operate unevenly. We replaced the braided steel cable, inspected and serviced the drive motor, and routed the new cable through the guide system. The slide now operates smoothly and evenly.
For the tank gauge, we installed a new digital monitoring panel on the lower rear exterior, replacing the failed original unit. The new gauge provides accurate readings for tank levels and battery status.
The Fuzion left our facility with all three issues fully resolved — a sealed and refinished slide corner, a smooth-operating slide mechanism, and accurate tank monitoring.
— Nations RV & Marine Team
Project Photos
The Challenge
The Fuzion had a cracked fiberglass exterior wall at the slide-out corner where stress and water intrusion had damaged the underlying wood structure. The slide cable had stretched and frayed causing uneven operation, and the tank gauge had failed completely. Water damage behind the slide panel had compromised insulation and interior wall materials.
Our Solution
We removed the damaged fiberglass section, replaced compromised framing at the slide corner, and fabricated a custom fiberglass patch matched to the original body contour. The repaired area was primed, painted to factory match, and the Fuzion graphics were reinstalled. The slide cable and drive mechanism were replaced, and a new digital tank gauge panel was installed on the rear exterior.
Scope of Work
- Exterior fiberglass crack assessment and panel removal
- Slide corner framing and blocking replacement
- Custom fiberglass layup and repair
- Surface fairing and preparation for paint
- Factory-match paint application with graphics protection
- Fuzion decal graphics reinstallation
- Slide cable removal and replacement
- Slide drive motor inspection and service
- Cable routing through guide system
- Tank gauge removal and digital replacement
- Interior wall and insulation repair behind slide
- Final slide operation testing and quality check
Technical Details
| Vehicle | Keystone Fuzion FZ 373 |
| Type | Toy Hauler Fifth Wheel |
| Fiberglass Repair | Custom Layup at Slide Corner |
| Paint | Factory-Match with Graphics Reinstall |
| Slide Cable | Full Braided Steel Cable Replacement |
| Tank Gauge | Digital Panel Replacement |
| Structural | Corner Framing & Blocking Rebuild |
| Location | Nations RV & Marine, Lyles, TN |
